Quick Details

  • Certification: CE
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: WRDA
  • Model Number: DV860
  • Warranty: 12 Months
  • Video recrod: 4 channel video monitoring
  • Video format: 4ch full D1
  • Features: with WIFI and GPS functions
  • Storage: HDD or SD card
  • External WIFI: RJ45 interface
  • monitoring: WIFI real-time live video tracking
  • Patented design: dual shockproof design
  • OEM order: accepted

Packaging & Delivery

Packaging Details standard packing for 4 channel wifi gps mobile dvr
Delivery Time 1-3days after paymnt confirmed

4ch hdd hd D1 car gps black box with wifi RJ45 Wan/Net port RS485 for vehicle/car security fleet management

Product Description

This mobile DVR/Car Black Box/Car DVR is suitable for all kinds of Vehicles such as Bus / Taxi / Long-distance coach / Truck / Logistics vehicle / Police Law Enforcement vehicle / Emergency Response vehicle e.t.c.

It's  the best Vehicle CCTV solution for vehicle tracking and fleet management. This mobile dvr /Car Black Box/Car DVR can be remote monitored and controled in Control Center via CMS software like PC Client.



The DVR is a cost-effective, functional and scalable device designed for video surveillance and real-time remote monitoring of our network. It uses a high-speed processor, an embedded Linux platformand combines the most advanced IT processes such as H.264 Video Compression/Decompression.

DV860 is the world’s first 4 channel D1 resolution vehicle DVR with multiple functions. It
uses a high-speed processor, an embeded Linux platform, and combines the most
advanced IT processes such as H.264 video compression/decompression, GPS; WAN
network and WIFI technology. The system supports hard drive disk, SD card and USB
external device for data storage, which achieves video with 4 channel D1 format capture,
together with the driving information and the GPS information such as driving route, speed,
coordinate, Google map etc. The product is featured for its simple designed, excellent
dual anti-vibration function, powerful functionality, flexible installation and high reliability.





1.Main functions:



1) 4 channel video and audio recording
2) D1 resolution for each channel (PAL: 704x576 / NTSC: 720x480)
3) High resolution recording, mega-pixel up to for 4 channel(1280x1024)
4) Advanced H.264 High Profile technology for video compression
5) Built-in GPS module
6) Built-in WAN Port, WAN is available; Support WIFI
7) Motion detection / timer switch / sensor & alarm recording
8) Dual anti-vibration
9) Data Storage: Max support 2TB SATA HDD; 64GB SD Card; USB storage device
10) Sensors & Alarm
11) Record vehicle speed and car ID synchronization with video and audio
12) Compact size, much easier for installation.
13) Power: DC+8V—+36V; the best voltage is around +12V-+24V.
14) Weight: 1.2 KG
15) Size: 148mm*122mm*45mm
16) Language: Simplified / Traditional Chinese /English/Japanese/Korean/Russian.
17) CE, FCC and RoHS certification. SGS tested reported.

12)Fan-less cooling  design:most of the market's vehicle DVRs are built-in fan, over time there will be mass of dust leading to short-circuit. But our dvr depends on itself to dissipate heat, low

power consumption and small calorific value.





2. Specifications:



SPECIFICATION



Item

DV860

VIDEO

Video input

4 channels

Video output

1 channel, 1.0V, p-p, 75Ω, BNC

Video format

Support PAL/NTSC

Video compression

H.264 High Profile

Record resolution

720x480 (NTSC) / 704x576 (PAL)

Frame rate

100fps(PAL) / 120fps(NTSC)

Video bitrate

1.98Mbps ~ 4.5Mbps, 4 level video quality

AUDIO

Audio input

4 channels

Audio input format

20KΩ, RCA

Audio output

1 channel, 500Ω, RCA

Audio level

1V ~2V, p-p

Audio compression

G.711

STORAGE

Storage

2.5 inch Hard drive(Max support 2TB), SD card, external USB device (memory stick or hard drive)

File format

AVI

INTERFACE

Sensors

1 speed sensor, 1 ignition sensor, 3 sensors

Com port

2 RS232 port, 1 RS485 port

Network

RJ45, 10M/100M Ethernet

WAN

Available; Support external Wifi

GPS

Built-in GPS module, GPS information(Google map, driving route, Coordinate, Speed) can be recorded together with video and audio.

SOFTWARE

Player

Specially designed player for the DVR

Third-party software

Windows Media Player(Ver 11.0 or above), VLC Media Player(Ver1.0.0 or above)

POWER

Input power

DC+8V ~ DC+32V

Power output

DC+12V/1.5A +3V/1A

Power consumption

Working power: <5W, Strand by power: 0.5W (exclude camera, hard drive, monitor)

OTHER

Working temperature

From -10℃ ~ +85

Size

150mm x 150mm x 62mm (Includes shock mount)

Weight

0.9kgs (Shock mount included)





 3.  4 channel mobile DVR applications:

bus DVR,school bus DVR, Tourism bus DVR ,car DVR, private car DVR,police car DVR,train DVR, truck DVR,Fire truck,Excavator DVR,coach DVR, cash carrier DVR, industrial vehicle DVR, taxi DVR, investigation vehicle DVR, military truck DVR, police vehicle DVR, ambulance DVR,  yacht DVR, aircraft DVR, vessel DVR, fleet management,etc.





Detailed Images
DV960A whole set:



Solutions:



Live video tracking VIA WIFI function on the CMS software client on PC:







Testing:

1.Dual-shockproof testing

2.High temperature testing

3.Aging testing for 24 hours before shipment.



Certifications:





Packaging & Shipping

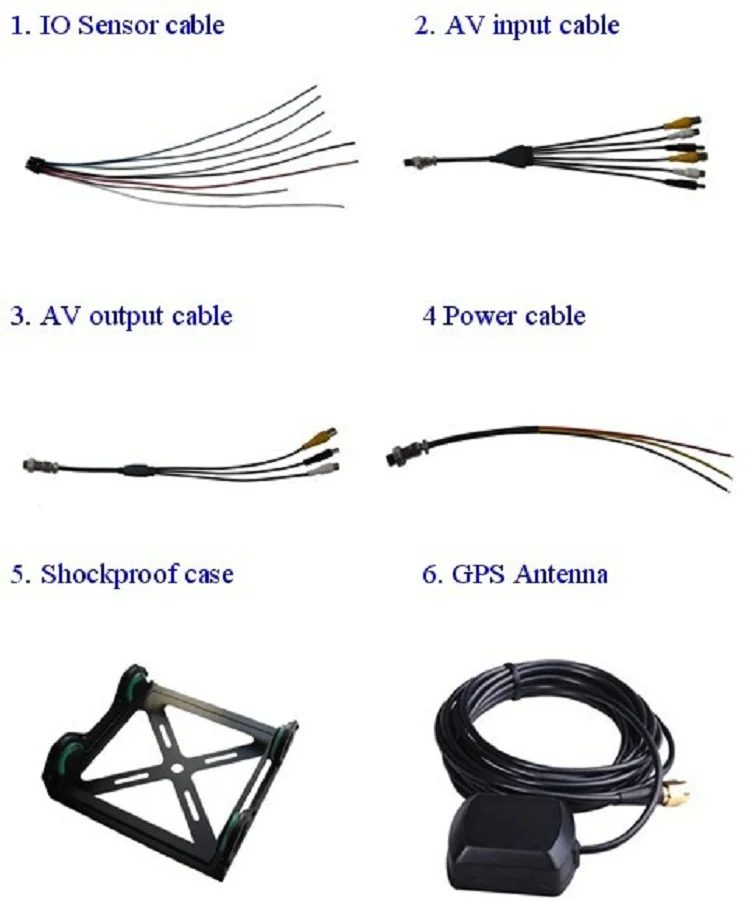

Standard Packing List:



ItemDescriptionQuantity
1MDVR1pcs
2Key1pcs
3HDD case1pcs
4Anti-vibration mount(shock mount)1pcs
5AV input cables2pcs
6AV output cables1pcs
7Power cable1pcs
8Integration cable1pcs
9Remote controler & Battery1pcs
10Fuse box1pcs
113Amp fuse2pcs
12CD1pcs
13GPS antenna1pcs
14Screw for DVR installation4pcs



Selectable Packing List:



ItemDescription
1IR extension cable
2HDD reader
3HDD case
4Extension cable for BNC cameras
5Extension cable for special cameras
6SD card,HDD
7Hard disk(320GB, 500GB, 750GB, 1TB)
8Sound pick up(2.5M cable)





Our Services

1. 12 months quality warranty.

2. Professional sales & development department.

3. Quick and effective respond for your inquiry.

4.OEM/ODM order is accepted.

5.Factory price.
